Plot One or More Landscapes

Source: R/plot_landscapes.R
plot_landscapes.Rd

Plots one landscape or arranges several landscape plots in a grid.

Usage

plot_landscapes(
  landscapes,
  titles = "pattern",
  show_legend = TRUE,
  legend_title = "Value",
  ncol = NULL,
  max_landscapes = 36,
  subset_index = NULL
)

Arguments

landscapes

A landscape object or a list of landscape objects, such as those returned by create_landscape, create_landscapes, or landscape.

titles

Character. One of "name", "pattern", "both", "none", a single custom title, or one custom title per landscape (default: "pattern"). A single custom title is repeated with a warning when several landscapes are plotted. With subset_index, a vector of custom titles must match the subset length.

show_legend

Logical. Show one combined legend (default: TRUE).

legend_title

Character. Legend title (default: "Value").

ncol

Integer. Number of grid columns (default: NULL).

max_landscapes

Positive integer. Maximum number of landscapes shown (default: 36). Use Inf to show all landscapes.

subset_index

Integer vector. Indices of the landscapes to plot, in the requested order (default: NULL for plotting all landscapes).

Value

A patchwork object combining one or more landscape plots.

Details

Use & to add ggplot2 elements to every panel, for example plot_landscapes(landscapes) & ggplot2::theme_dark(). With multiple landscapes, + modifies only the last panel.

See also

create_landscape, create_landscapes, landscape

Other visualization: plot_classified_landscapes(), plot_metrics()

Examples

# Plot a single landscape
l <- create_landscape("sharp", width = 50, height = 50)
plot_landscapes(l)

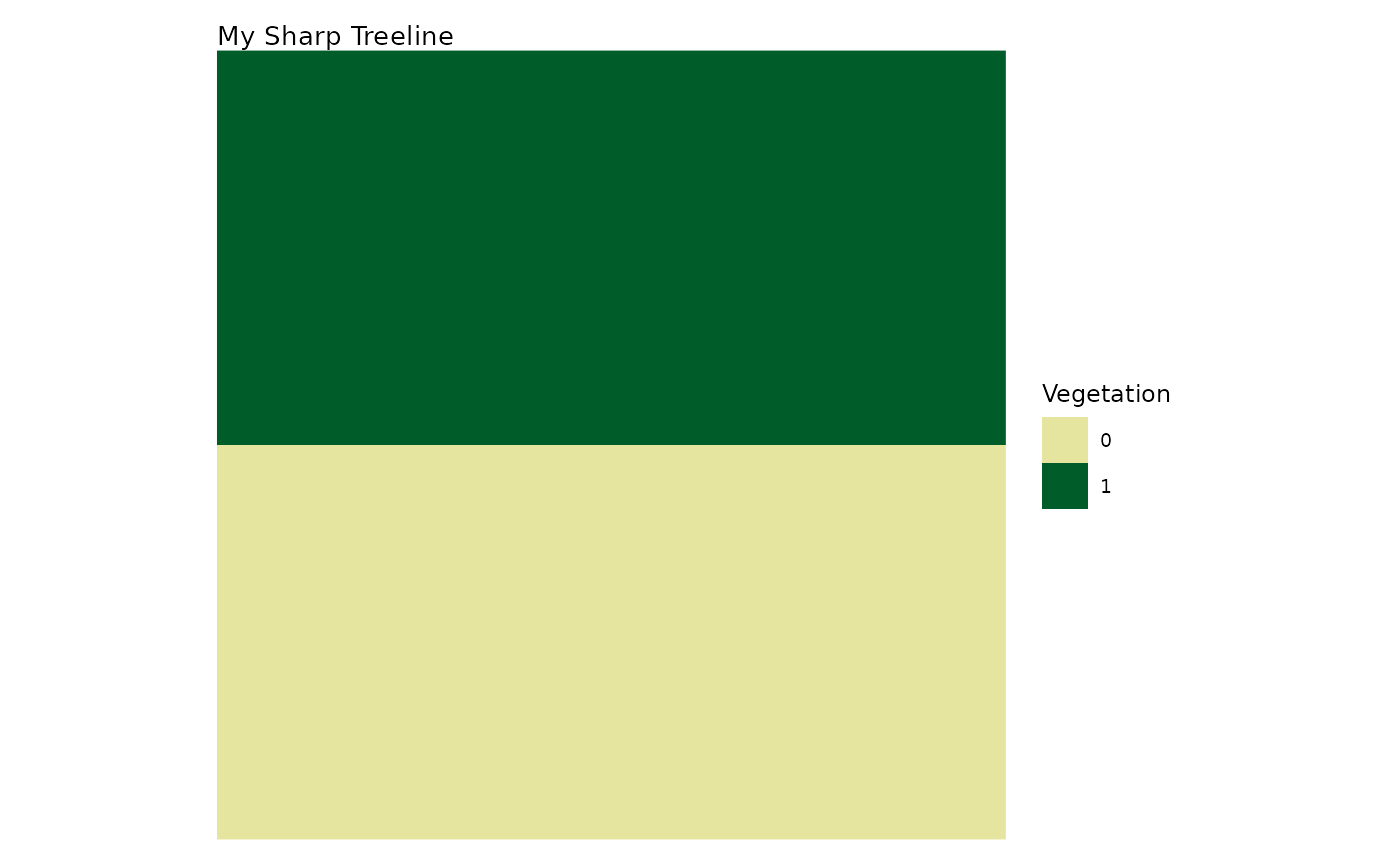

# Custom title and legend for a single landscape
plot_landscapes(l,
                titles = "My Sharp Treeline",
                legend_title = "Vegetation")

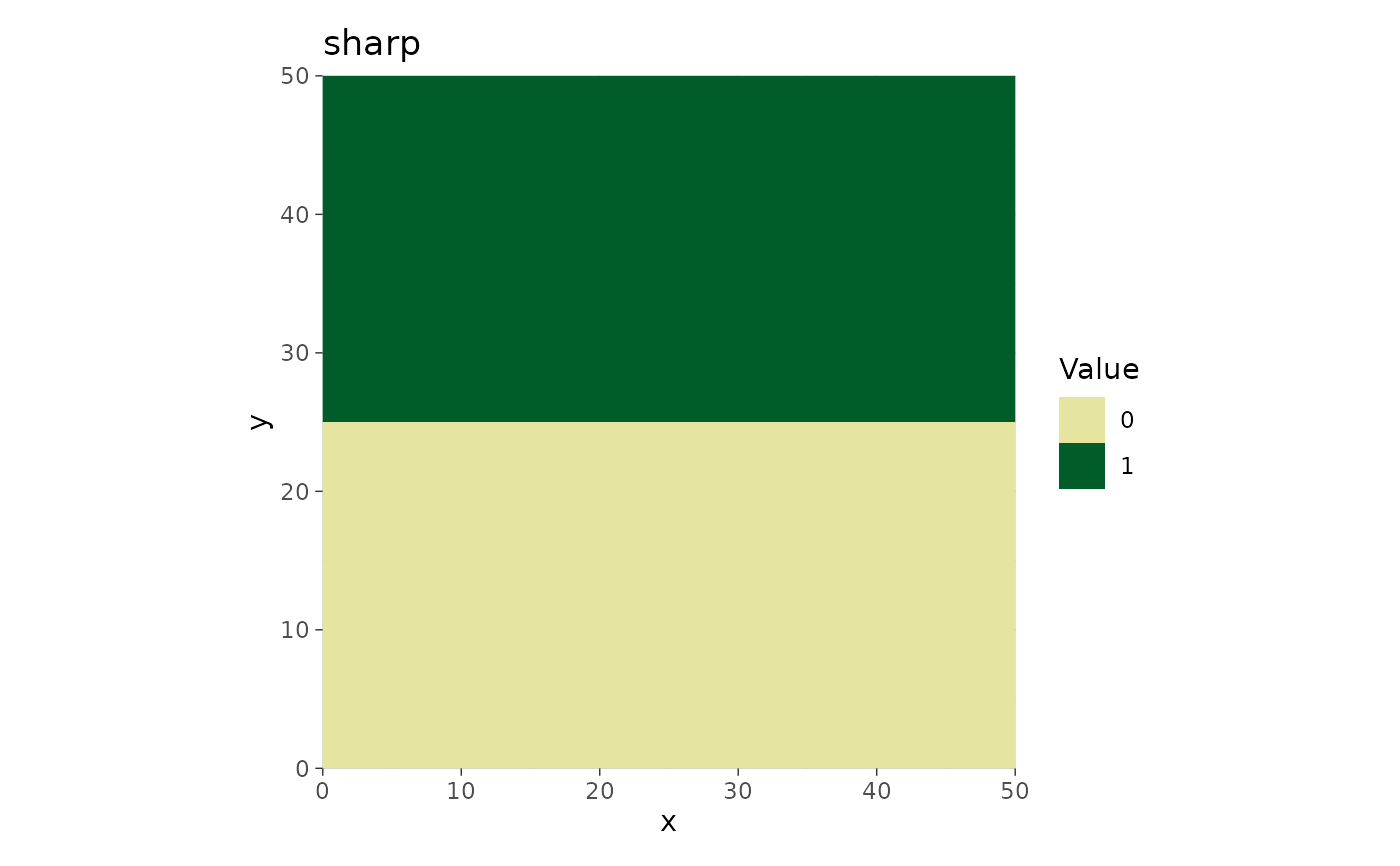

# Use & (not +) to add ggplot2 elements to every panel
plot_landscapes(l) & ggplot2::theme_dark()


# Create a list of different landscapes
landscapes <- list(
  create_landscape("sharp", width = 50, height = 50),
  create_landscape("random", width = 50, height = 50),
  create_landscape("diffuse", width = 50, height = 50)
)

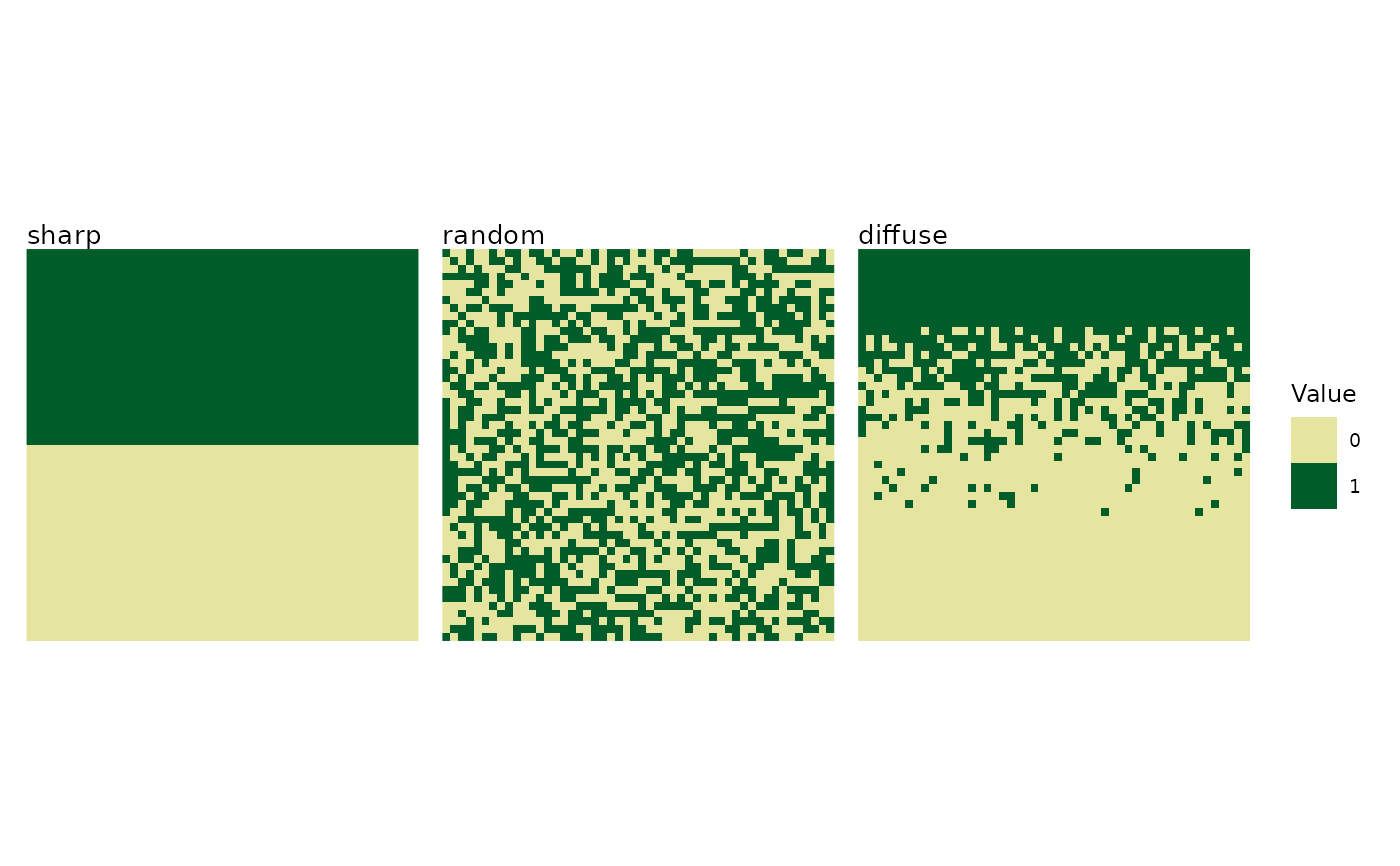

# Default plot (3x1 grid)
plot_landscapes(landscapes)

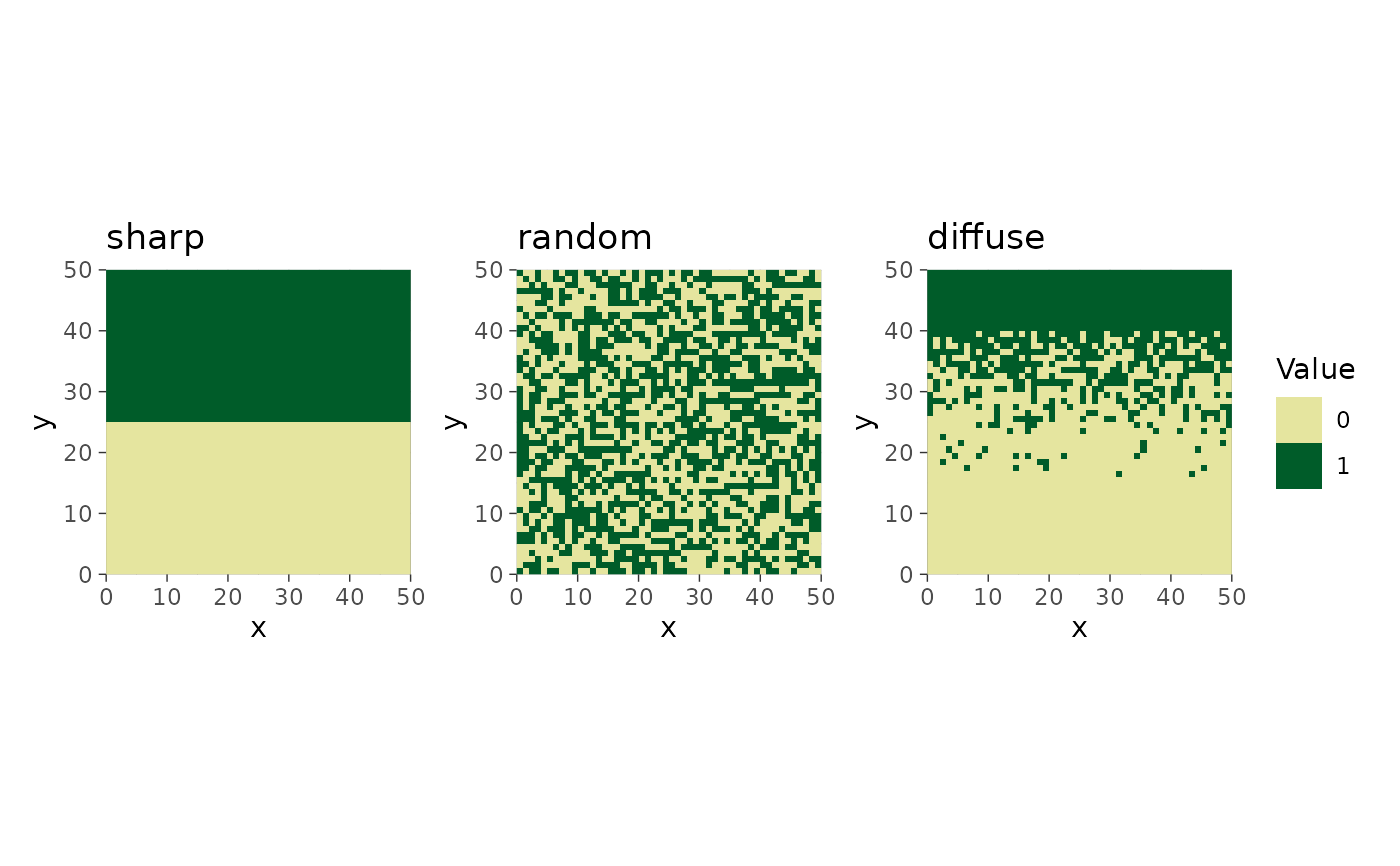

# & applies to all three panels; + would only affect the last one
plot_landscapes(landscapes) & ggplot2::theme_dark()

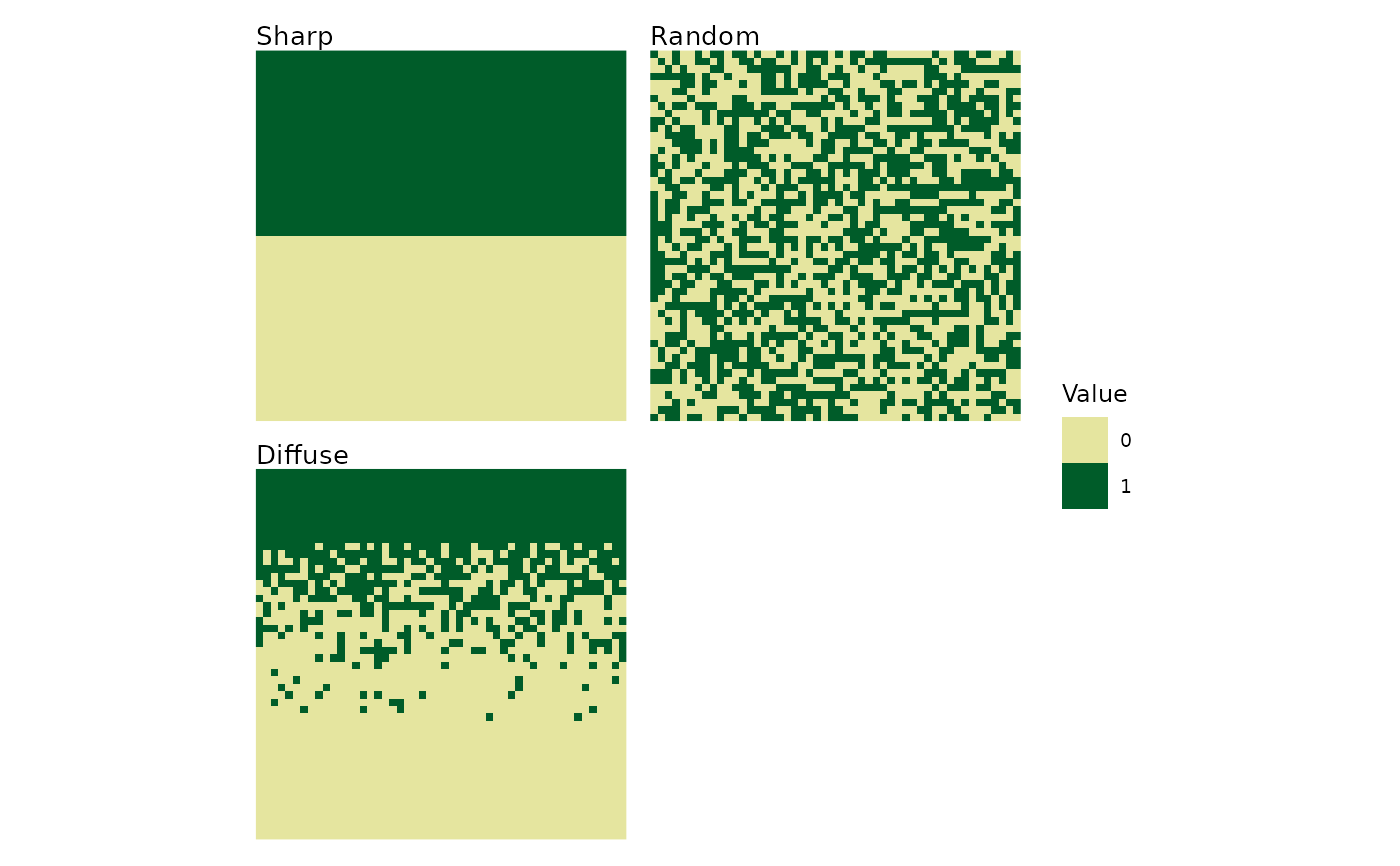

# 2-column grid with custom titles
plot_landscapes(landscapes,
                titles = c("Sharp", "Random", "Diffuse"),
                ncol = 2)

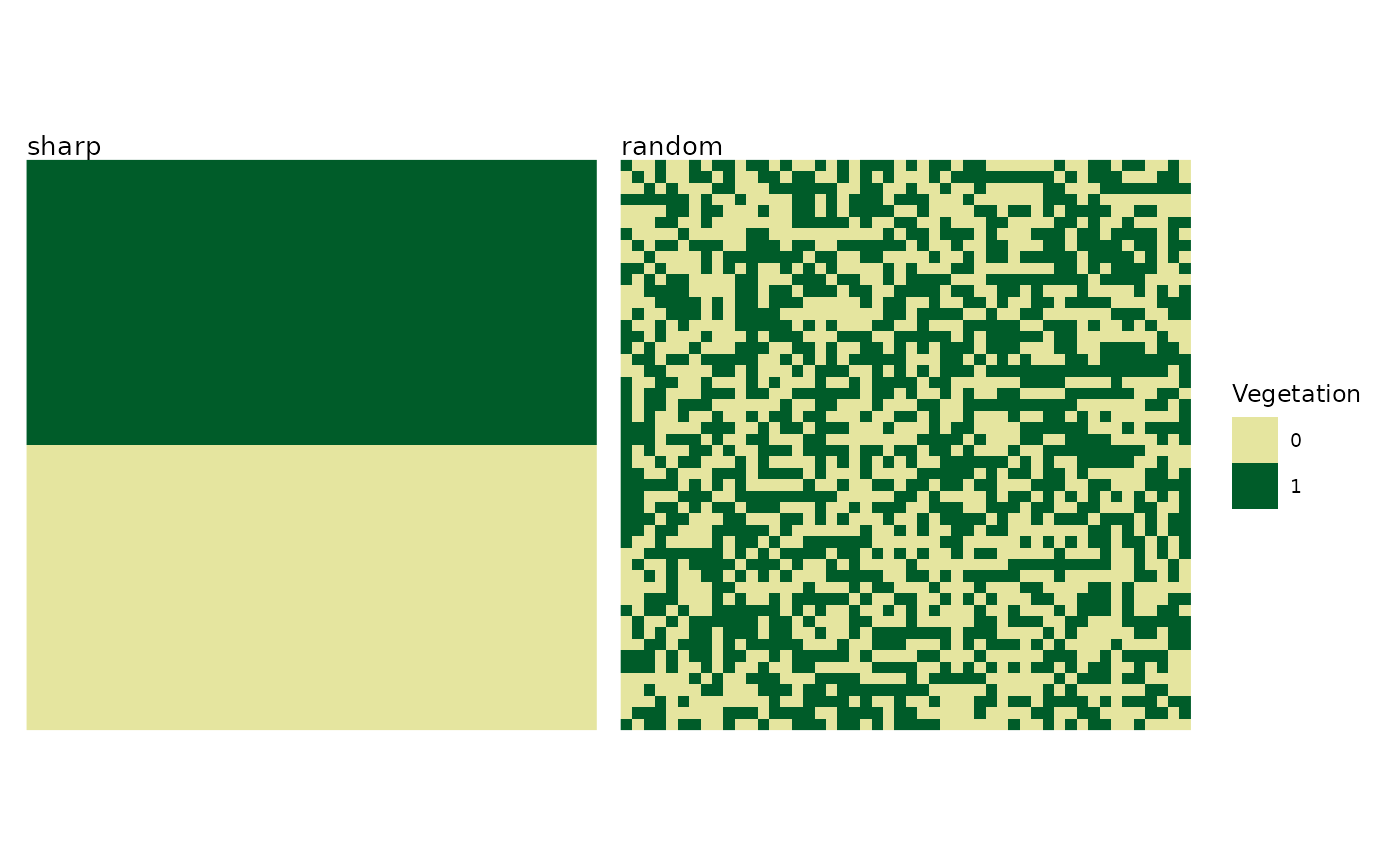

# Plot only first two landscapes
plot_landscapes(landscapes,
                subset_index = 1:2,
                legend_title = "Vegetation")

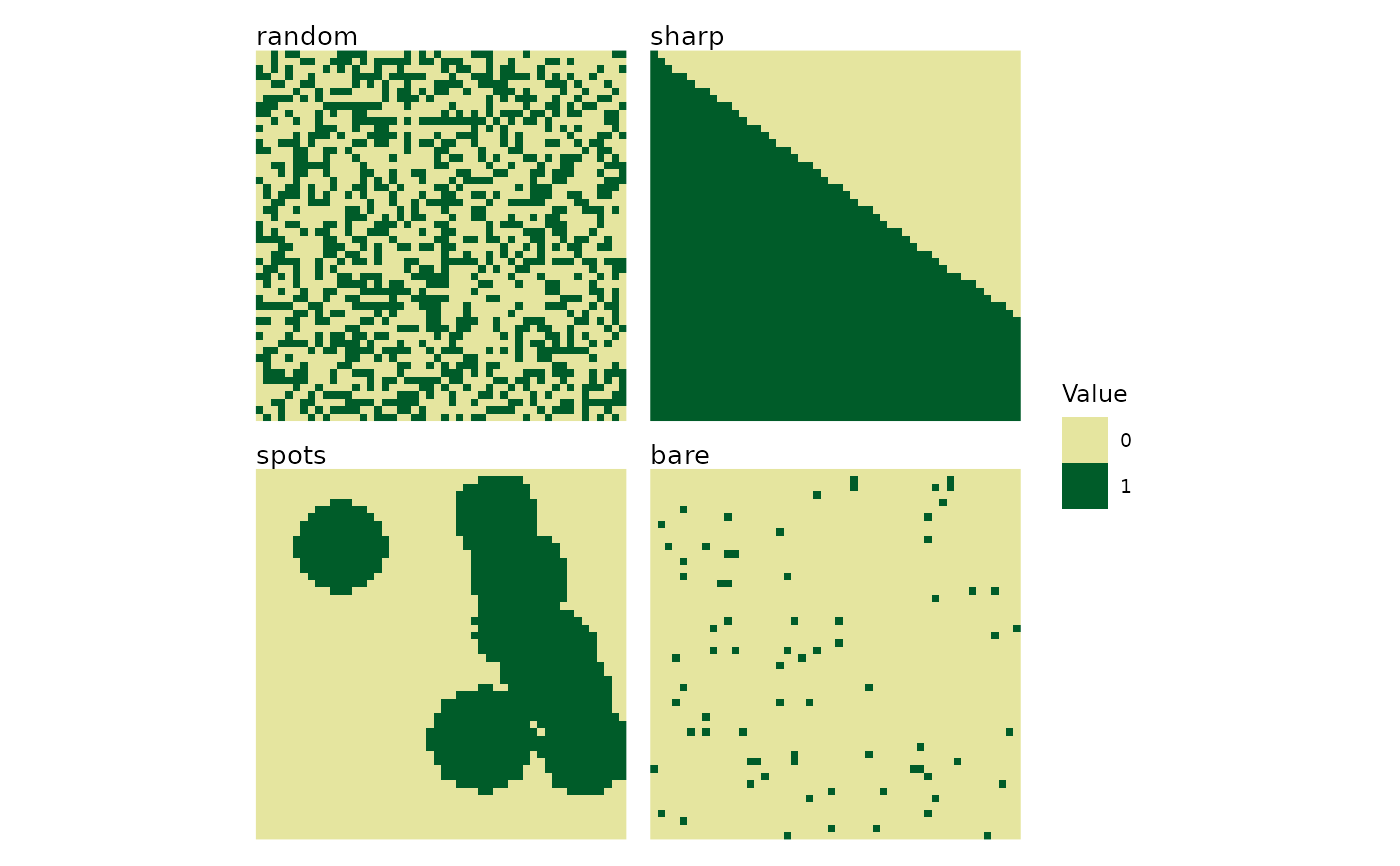

# Create many landscapes and handle overflow
many_landscapes <- create_landscapes(n = 12, width = 50, height = 50)
#> ✔ Successfully generated all 12 training landscapes
plot_landscapes(many_landscapes,
                max_landscapes = 4,  # Show first 4 only
                ncol = 2)            # In 2x2 grid
#> Warning: Showing the first 4 of 12 landscapes. Increase `max_landscapes` to show more,
#> or use `subset_index` to select landscapes.
