Plot Multiple Landscapes

Source: R/plot_landscapes.R
plot_landscape_list.Rd

Creates a grid of multiple landscape plots.

Usage

plot_landscape_list(
  landscapes,
  titles = "pattern",
  show_legend = TRUE,
  legend_title = "Value",
  ncol = NULL,
  max_landscapes = 36,
  force = FALSE,
  subset_index = NULL
)

Arguments

landscapes

List. List of landscape objects to plot. E.g. created by create_landscapes.

titles

Character. Controls the plot titles: - "name": uses only the landscape name - "pattern": uses only the landscape pattern - "both": uses "name (pattern)" format - "none": no title - A character vector with custom titles for each landscape. If providing `subset_index`, ensure titles match the subset length. Default is "pattern"

show_legend

Logical. Whether to show a single combined legend (default: TRUE).

legend_title

Character. Title for the legend (default: "Value").

ncol

Integer. Number of columns in the plot grid (default: NULL).

max_landscapes

Integer. Maximum number of landscapes to plot (default: 36). Plotting more than 36 landscapes (6x6 grid) is not recommended.

force

Logical. Override max_landscapes limit (default: FALSE).

subset_index

Integer vector. Indices of landscapes to plot. Can be used to plot specific landscapes or change plot order (default: NULL).

Value

A ggplot object combining all landscape plots in a grid.

See also

create_landscapes

Other visualization: plot_classified_landscapes(), plot_landscape(), plot_metrics()

Examples

# Create a list of different landscapes
landscapes <- list(
  create_landscape("sharp", width = 50, height = 50),
  create_landscape("random", width = 50, height = 50),
  create_landscape("diffuse", width = 50, height = 50)
)

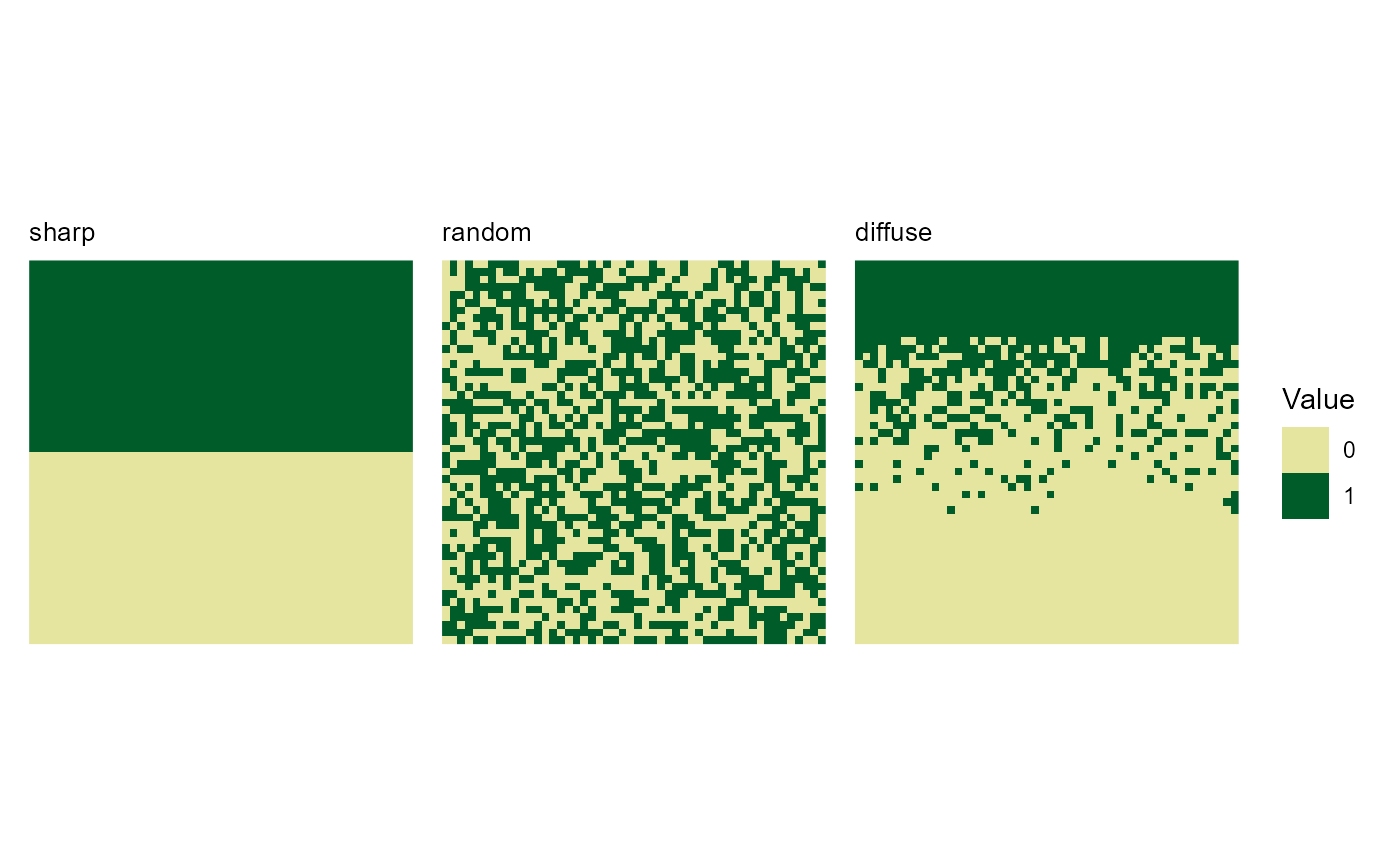

# Default plot (3x1 grid)
plot_landscape_list(landscapes)

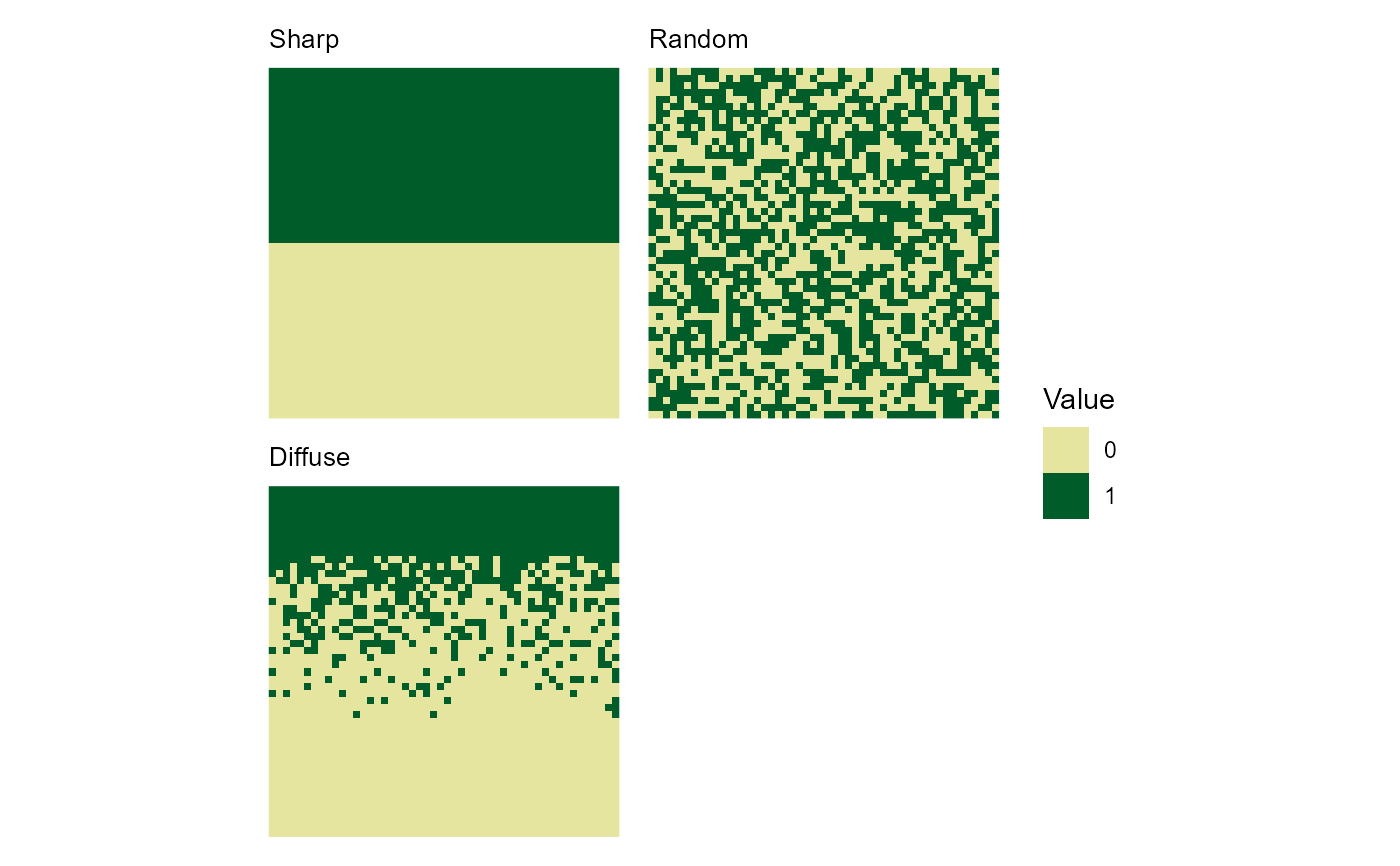

# 2-column grid with custom titles
plot_landscape_list(landscapes,
                   titles = c("Sharp", "Random", "Diffuse"),
                   ncol = 2)

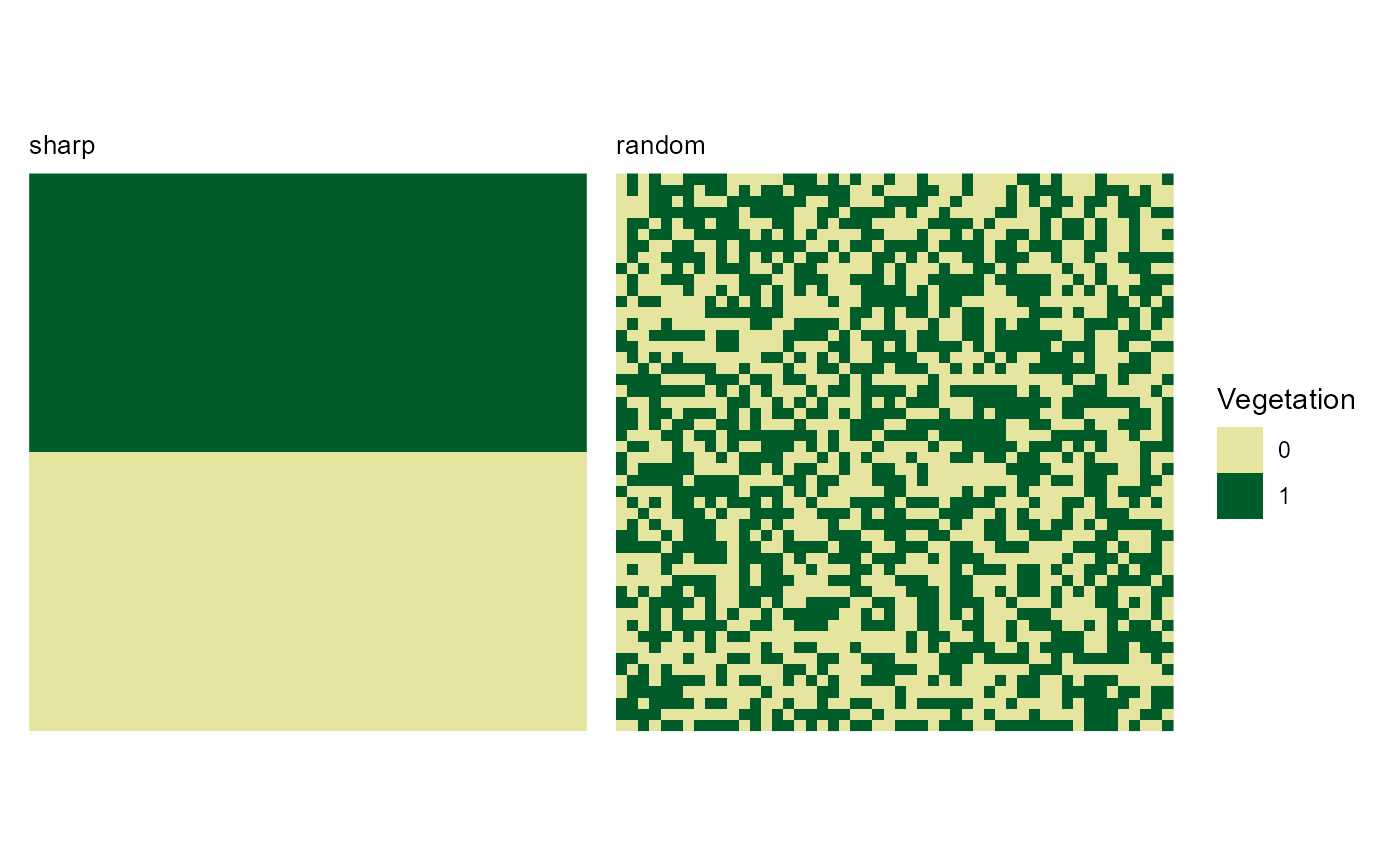

# Plot only first two landscapes
plot_landscape_list(landscapes,
                   subset_index = 1:2,
                   legend_title = "Vegetation")


# Create many landscapes and handle overflow
many_landscapes <- create_landscapes(n = 50)
#> Warning: Regular spot placement requested 10 spots but only ~8 positions fit.
#> ℹ  Adjusting to maximum feasible spots. Consider decreasing `spot_radius`.
#> Warning: Regular spot placement requested 10 spots but only ~8 positions fit.
#> ℹ  Adjusting to maximum feasible spots. Consider decreasing `spot_radius`.
#> ✔ Successfully generated all 50 training landscapes

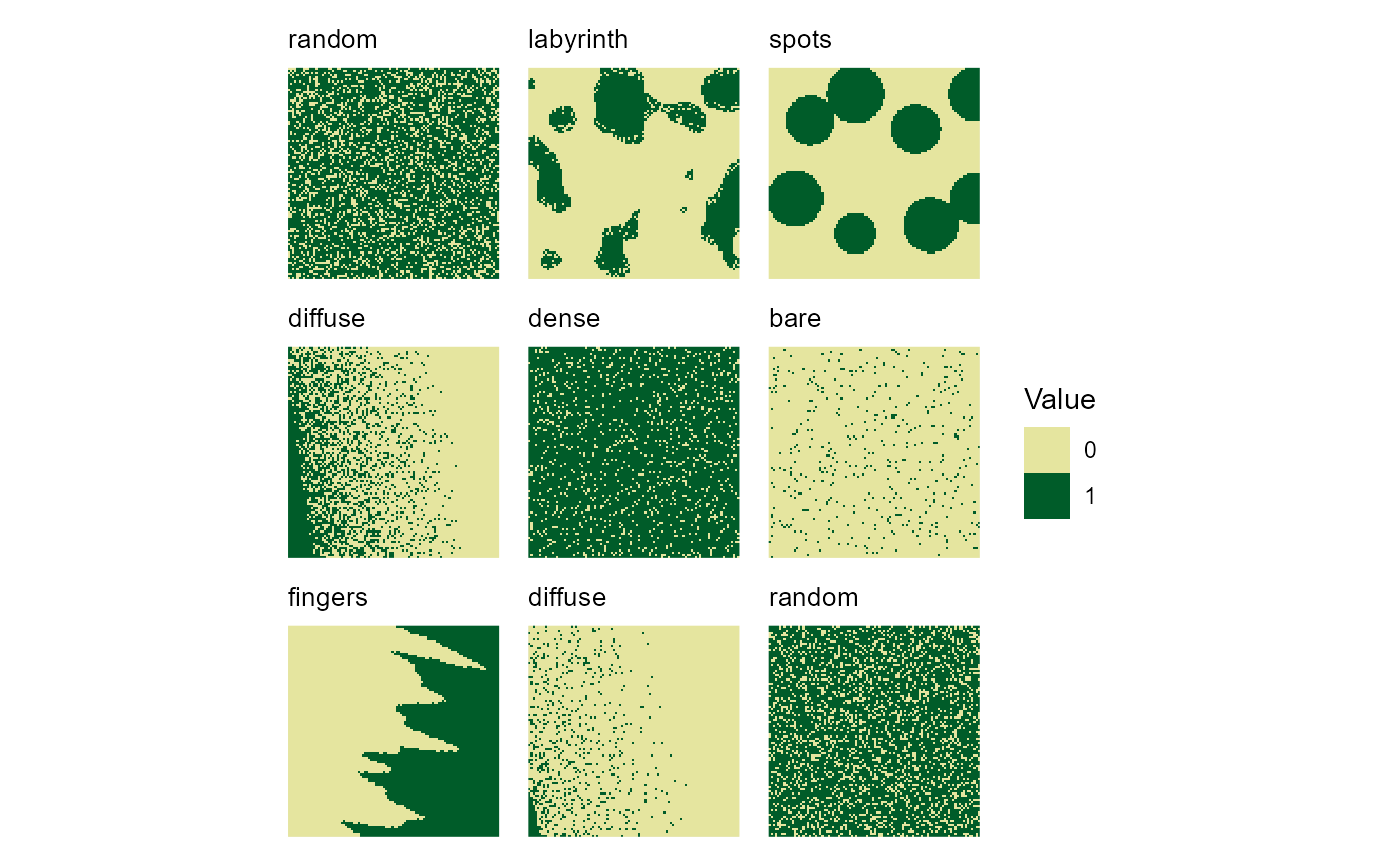

plot_landscape_list(many_landscapes,
                   max_landscapes = 9,  # Show first 9 only
                   ncol = 3)            # In 3x3 grid
#> Warning: Number of landscapes (50) exceeds maximum (9). Showing first 9. Use force=TRUE to override or subset_index to select a subset of landscapes to plot.
